The QListView class implements a list/tree view. More...
#include <qlistview.h>
Inherits QScrollView.
It can display and control a hierarchy of multi-column items, and provides the ability to add new items at any time. Among others the user may select one or many items and sort the list in increasing or decreasing order by any column.
The simplest mode of use is to create a QListView, add some column headers using addColumn() and create one or more QListViewItem or QCheckListItem objects with the QListView as parent:
QListView * table;
table->addColumn( "Qualified name" );
table->addColumn( "Namespace" );
element = new QListViewItem( table, qName, namespaceURI );
Further nodes can be added to the listview object (the root of the tree) or as child nodes to QListViewItems:
for ( int i = 0 ; i < attributes.length(); i++ ) {
new QListViewItem( element, attributes.qName(i), attributes.uri(i) );
}
(From xml/tagreader-with-features/structureparser.cpp )
The main setup functions are
To handle events such as mouse presses on the list view, derived classes can reimplement the QScrollView functions contentsMousePressEvent, contentsMouseReleaseEvent, contentsMouseDoubleClickEvent, contentsMouseMoveEvent, contentsDragEnterEvent, contentsDragMoveEvent, contentsDragLeaveEvent, contentsDropEvent, and contentsWheelEvent.
There are also several functions for mapping between items and coordinates. itemAt() returns the item at a position on-screen, itemRect() returns the rectangle an item occupies on the screen, and itemPos() returns the position of any item (not on-screen in the list view). firstChild() returns the item at the top of the view (not necessarily on-screen) so you can iterate over the items using either QListViewItem::itemBelow() or a combination of QListViewItem::firstChild() and QListViewItem::nextSibling().
If you need to move a list view item you can use takeItem() and insertItem(). Item's are deleted with delete; to delete all items use clear(). See the QListViewItem documentation for examples of traversal.
There are a variety of selection modes described in the QListView::SelectionMode documentation. The default is Single selection, which you can change using setSelectionMode().
Because QListView offers multiple selection it has to display keyboard focus and selection state separately. Therefore there are functions both to set the selection state of an item (setSelected()) and to select which item displays keyboard focus (setCurrentItem()).
QListView emits two groups of signals; one group signals changes in selection/focus state and one signals selection. The first group consists of selectionChanged() (applicable to all list views), selectionChanged( QListViewItem * ) (applicable only to Single selection list view), and currentChanged( QListViewItem * ). The second group consists of doubleClicked( QListViewItem * ), returnPressed( QListViewItem * ) and rightButtonClicked( QListViewItem *, const QPoint&, int ), etc.

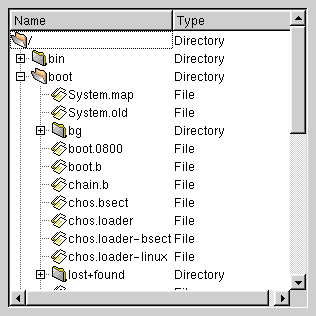

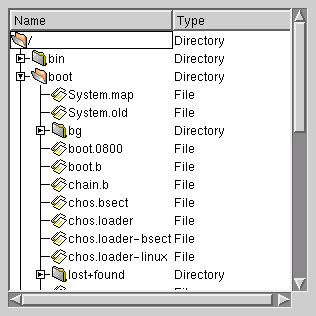

In Motif style, QListView deviates fairly strongly from the look and feel of the Motif hierarchical tree view. This is done mostly to provide a usable keyboard interface and to make the list view look better with a white background.
If selectionMode() is Single (the default) the user can select one item at a time, e.g. by clicking an item with the mouse, see QListView::SelectionMode for details.
The listview can be navigated either using the mouse or the keyboard. Clicking an - icon closes an item (hides its children) and clicking an + icon opens an item (shows its children). The keyboard controls are these:
Warning: The list view assumes ownership of all list view items and will delete them when it does not need them any more.
See also QListViewItem, QCheckListItem and Advanced Widgets.
This enum describes whether a rename operation is accepted if the rename editor loses focus without the user pressing Enter.
This enum describes how the header adjusts to resize events which affect the width of the listview.
This enumerated type is used by QListView to indicate how it reacts to selection by the user. It has four values:
In other words, Single is a real single-selection list view, Multi a real multi-selection list view, Extended is a list view where users can select multiple items but usually want to select either just one or a range of contiguous items, and NoSelection is a list view where the user can look but not touch.
This enum type describes how the width of a column in the view changes. The currently defined modes are:
See also setColumnWidth(), setColumnWidthMode() and columnWidth().
Performance is boosted by modifying the widget flags f so that only part of the QListViewItem children is redrawn. This may be unsuitable for custom QListViewItem classes, in which case WStaticContents and WRepaintNoErase should be cleared.
See also QWidget::clearWFlags() and Qt::WidgetFlags.
All columns apart from the first one are inserted to the right of the existing ones.
If width is negative, the new column's WidthMode is set to Maximum instead of Manual.
See also setColumnText(), setColumnWidth() and setColumnWidthMode().
Examples: addressbook/centralwidget.cpp, checklists/checklists.cpp, dirview/main.cpp, fileiconview/mainwindow.cpp, listviews/listviews.cpp and qdir/qdir.cpp.
Adds a width pixels wide new column with the header label and iconset to this QListView, and returns the index of the column.
If width is negative, the new column's WidthMode is set to Maximum, and to Manual otherwise.
See also setColumnText(), setColumnWidth() and setColumnWidthMode().
Returns TRUE if items should show keyboard focus using all columns; otherwise returns FALSE. See the "allColumnsShowFocus" property for details.
Returns the number of parentless (top level) QListViewItem objects in this QListView. See the "childCount" property for details.
See also triggerUpdate().
Examples: addressbook/centralwidget.cpp, checklists/checklists.cpp, listviews/listviews.cpp and network/ftpclient/ftpmainwindow.cpp.
See also setSelected() and multiSelection.
Example: addressbook/centralwidget.cpp.
This signal is emitted whenever the user clicks (mouse pressed and mouse released) in the list view. item is the pointer to the clicked list view item, or 0 if the user didn't click on an item.
Note that you may not delete any QListViewItem objects in slots connected to this signal.
Example: addressbook/centralwidget.cpp.
This is an overloaded member function, provided for convenience. It behaves essentially like the above function.
This signal is emitted whenever the user clicks (mouse pressed and mouse released) in the list view. item is the pointer to the clicked list view item, or 0 if the user didn't click on an item. pnt is the position where the user has clicked. If item is not 0, c is the list view column into which the user pressed; if item is 0 c's value is undefined.
Note that you may not delete any QListViewItem objects in slots connected to this signal.
This signal is emitted when the item has been collapsed, i.e. when the children of item are hidden.
See also setOpen() and expanded().
See also Qt::AlignmentFlags.
See also setColumnText().
See also setColumnWidth().
See also setColumnWidthMode().
Returns the number of columns in this list view. See the "columns" property for details.
Reimplemented from QScrollView.
Example: dirview/dirview.cpp.
Reimplemented from QScrollView.
Example: dirview/dirview.cpp.
Reimplemented from QScrollView.
Example: dirview/dirview.cpp.
Reimplemented from QScrollView.
This signal is emitted when the user invokes a context menu with the right mouse button or with special system keys, with item being the item under the mouse cursor or the current item, respectively.
pos is the position for the context menu in the global coordinate system.
col is the column on which the user pressed, or -1 if the signal was triggered by a key event.
Example: listviews/listviews.cpp.
This signal is emitted whenever the current item has changed (normally after the screen update). The current item is the item responsible for indicating keyboard focus.
The argument is the newly current item, or 0 if the change was to make no item current. This can happen, for example, if all items in the list view are deleted.
Note that you may not delete any QListViewItem objects in slots connected to this signal.
See also setCurrentItem() and currentItem().
Example: listviews/listviews.cpp.
See also setCurrentItem().
Examples: addressbook/centralwidget.cpp and listviews/listviews.cpp.
Returns TRUE if the list view accepts the rename operation by default; otherwise returns FALSE. See the "defaultRenameAction" property for details.
This signal is emitted whenever an item is double-clicked. It's emitted on the second button press, not the second button release. item is the list view item on which the user did the double-click.
By default this function returns 0. You should reimplement it and create a QDragObject depending on the selected items.
Reimplemented from QScrollView.
This signal is emitted, when a drop event occurred onto the viewport (not onto an item).
e gives you all information about the drop.
See also itemRect() and QScrollView::ensureVisible().
Reimplemented from QScrollView.
This signal is emitted when item has been expanded, i.e. when the children of item are shown.
See also setOpen() and collapsed().
Returns 0 if there is no first item.
See also itemAt(), QListViewItem::itemBelow() and QListViewItem::itemAbove().
Examples: addressbook/centralwidget.cpp and listviews/listviews.cpp.
You may safely call QHeader::setClickEnabled(), QHeader::setResizeEnabled(), QHeader::setMovingEnabled() and all the const QHeader functions.
Examples: listviews/listviews.cpp and qdir/qdir.cpp.
See also QListViewItem::takeItem() and takeItem().
Returns TRUE if the list view is in multi-selection or single selection mode; otherwise returns FALSE. See the "multiSelection" property for details.
See also setOpen().
See also QListViewItem::isSelected().
itemAt() returns 0 if there is no such item.
Note that you also get the pointer to the item if viewPos points to the root decoration (see setRootIsDecorated()) of the item. To check whether or not viewPos is on the root decoration of the item, you can do something like this:
QListViewItem *i = itemAt( p );
if ( i ) {
if ( p.x() > header()->cellPos( header()->mapToActual( 0 ) ) +
treeStepSize() * ( i->depth() + ( rootIsDecorated() ? 1 : 0) ) + itemMargin() ||
p.x() < header()->cellPos( header()->mapToActual( 0 ) ) ) {
; // p is not on root decoration
else
; // p is on the root decoration
}
This might be interesting if you use this function to find out where the user clicked and if you want to start a drag (which you do not want to do if the user clicked onto the root decoration of an item).
See also itemPos() and itemRect().
Returns the advisory item margin that list items may use. See the "itemMargin" property for details.
This is a thin wrapper around QListViewItem::itemPos().
See also itemAt() and itemRect().
The rectangle returned does not include any children of the rectangle (i.e. it uses QListViewItem::height(), rather than QListViewItem::totalHeight()). If you want the rectangle to include children you can use something like this:
QRect r( listView->itemRect( item ) );
r.setHeight( (QCOORD)(QMIN( item->totalHeight(),
listView->viewport->height() - r.y() ) ) )
Note the way it avoids too-high rectangles. totalHeight() can be much larger than the window system's coordinate system allows.
itemRect() is comparatively slow. It's best to call it only for items that are probably on-screen.
This signal is emitted when item has been renamed to text, e.g. by in in-place renaming, in column col.
This is an overloaded member function, provided for convenience. It behaves essentially like the above function.
This signal is emitted when item has been renamed, e.g. by in-place renaming, in column col.
Returns 0 if there are no items in the QListView.
This function is slow.
This signal is emitted whenever the user clicks (mouse pressed and mouse released) in the list view at position pos. button is the mouse button that the user pressed, item is the pointer to the clicked list view item or 0 if the user didn't click on an item. If item is not 0, c is the list view column into which the user pressed; if item is 0 c's value is undefined.
Note that you may not delete any QListViewItem objects in slots connected to this signal.
This signal is emitted whenever the user pressed the mouse button in the list view at position pos. button is the mouse button which the user pressed, item is the pointer to the pressed list view item or 0 if the user didn't press on an item. If item is not 0, c is the list view column into which the user pressed; if item is 0 c's value is undefined.
Note that you may not delete any QListViewItem objects in slots connected to this signal.
This signal is emitted when the user moves the mouse cursor onto the item i, similar to the QWidget::enterEvent() function.
The default function fills rect with the viewport()->backgroundBrush()
This signal is emitted whenever the user presses the mouse button in a list view. item is the pointer to the list view item on which the user pressed the mouse button, or 0 if the user didn't press the mouse on an item.
Note that you may not delete any QListViewItem objects in slots connected to this signal.
This is an overloaded member function, provided for convenience. It behaves essentially like the above function.
This signal is emitted whenever the user presses the mouse button in a list view. item is the pointer to the list view item on which the user pressed the mouse button, or 0 if the user didn't press the mouse on an item. pnt is the position of the mouse cursor, and c is the column where the mouse cursor was when the user pressed the mouse button.
Note that you may not delete any QListViewItem objects in slots connected to this signal.
This function has been renamed takeItem().
Returns TRUE if all, none or the last column should be resized; otherwise returns FALSE. See the "resizeMode" property for details.
This signal is emitted when Enter or Return is pressed. The argument is the currentItem().
This signal is emitted when the right button is clicked (i.e. when it's released). The arguments are the relevant QListViewItem (may be 0), the point in global coordinates and the relevant column (or -1 if the click was outside the list).
This signal is emitted when the right button is pressed. Arguments are then the relevant QListViewItem (may be 0), the point in global coordinates and the relevant column (or -1 if the click was outside the list).
Returns TRUE if the list view show open/close signs on root items; otherwise returns FALSE. See the "rootIsDecorated" property for details.
If no items are selected or the list view is in multi-selection mode this function returns 0.
See also setSelected() and multiSelection.
This signal is emitted whenever the set of selected items has changed (normally before the screen update). It is available both in Single selection and Multi selection mode but is most useful in Multi selection mode.
Note that you may not delete any QListViewItem objects in slots connected to this signal.
See also setSelected() and QListViewItem::setSelected().
Example: listviews/listviews.cpp.
This is an overloaded member function, provided for convenience. It behaves essentially like the above function.
This signal is emitted whenever the selected item has changed in Single selection mode (normally after the screen update). The argument is the newly selected item.
The no argument overload of this signal is more useful in Multi selection mode.
Note that you may not delete any QListViewItem objects in slots connected to this signal.
See also setSelected(), QListViewItem::setSelected() and currentChanged().
Returns the list view's multi-selection mode. See the "selectionMode" property for details.
Sets whether items should show keyboard focus using all columns. See the "allColumnsShowFocus" property for details.
See also Qt::AlignmentFlags.
Example: listviews/listviews.cpp.
See also columnText().
Sets the heading of column column to iconset and label. The leftmost column is 0.
See also columnText().
See also columnWidth().
See also QListViewItem::width().
See also currentItem() and setSelected().
Example: listviews/listviews.cpp.
Sets whether the list view accepts the rename operation by default to a. See the "defaultRenameAction" property for details.
Sets the advisory item margin that list items may use. See the "itemMargin" property for details.
Sets whether the list view is in multi-selection or single selection mode to enable. See the "multiSelection" property for details.
See also QListViewItem::setOpen() and QListViewItem::setExpandable().
Sets whether all, none or the last column should be resized to m. See the "resizeMode" property for details.
Sets whether the list view show open/close signs on root items. See the "rootIsDecorated" property for details.
If the list view is in Single selection mode and selected is TRUE, the currently selected item is unselected and item is made current. Unlike QListViewItem::setSelected(), this function updates the list view as necessary and emits the selectionChanged() signals.
See also isSelected(), multiSelection, multiSelection and setCurrentItem().
Example: listviews/listviews.cpp.
Sets the list view's multi-selection mode to mode. See the "selectionMode" property for details.
Sets whether the list view header should display a sort indicator to show. See the "showSortIndicator" property for details.
Sets whether this list view should show tooltips for truncated column texts to b. See the "showToolTips" property for details.
If column is -1, sorting is disabled and the user cannot sort columns by clicking on the column headers. If column is larger than the number of columns the user has to click on a column header to sort the list view.
Sets the number of pixels a child is offset from its parent. See the "treeStepSize" property for details.
Returns TRUE if the list view header should display a sort indicator; otherwise returns FALSE. See the "showSortIndicator" property for details.
Returns TRUE if this list view should show tooltips for truncated column texts; otherwise returns FALSE. See the "showToolTips" property for details.
This signal is emitted when Space is pressed. The argument is currentItem().
See also insertItem().
Returns the number of pixels a child is offset from its parent. See the "treeStepSize" property for details.
This property holds whether items should show keyboard focus using all columns.
If this property is TRUE all columns will show focus and selection states, otherwise only column 0 will show focus.
The default is FALSE.
Setting this to TRUE if it's not necessary may cause noticeable flicker.
Set this property's value with setAllColumnsShowFocus() and get this property's value with allColumnsShowFocus().
This property holds the number of parentless (top level) QListViewItem objects in this QListView.
Represents the current number of parentless (top level) QListViewItem objects in this QListView, like QListViewItem::childCount() returns the number of child items for a QListViewItem.
See also QListViewItem::childCount().
Get this property's value with childCount().
This property holds the number of columns in this list view.
Get this property's value with columns().
See also addColumn() and removeColumn().
This property holds whether the list view accepts the rename operation by default.
If this property is Accept, and the user renames an item and the editor looses focus (without the user pressing Enter), the item will still be renamed. If the property's value is Reject, the item will not be renamed unless the user presses Enter. The default is Reject.
Set this property's value with setDefaultRenameAction() and get this property's value with defaultRenameAction().
This property holds the advisory item margin that list items may use.
The item margin defaults to one pixel and is the margin between the item's edges and the area where it draws its contents. QListViewItem::paintFocus() draws in the margin.
See also QListViewItem::paintCell().
Set this property's value with setItemMargin() and get this property's value with itemMargin().
This property holds whether the list view is in multi-selection or single selection mode.
If you enable multi-selection mode, it is possible to specify whether or not this mode should be extended. Extended means that the user can select multiple items only when pressing the Shift or Ctrl key at the same time.
The default selection mode is Single.
See also selectionMode.
Set this property's value with setMultiSelection() and get this property's value with isMultiSelection().
This property holds whether all, none or the last column should be resized.
Specifies whether all, none or the last column should be resized to fit the full width of the listview. The values for this property can be one of the following: NoColumn (the default), AllColumns or LastColumn.
See also QHeader and header().
Set this property's value with setResizeMode() and get this property's value with resizeMode().
This property holds whether the list view show open/close signs on root items.
Open/close signs are small + or - symbols in windows style, or arrows in Motif style. The default is FALSE.
Set this property's value with setRootIsDecorated() and get this property's value with rootIsDecorated().
This property holds the list view's multi-selection mode.
The mode can be Single (the default), Extended, Multi or NoSelection.
See also multiSelection.
Set this property's value with setSelectionMode() and get this property's value with selectionMode().
This property holds whether the list view header should display a sort indicator.
If this property is TRUE, an arrow is drawn in the header of the list view to indicate the sort order of the list view contents. The arrow will be drawn in the correct column and will point up or down, depending on the current sort direction. The default is FALSE (don't show an indicator).
See also QHeader::setSortIndicator().
Set this property's value with setShowSortIndicator() and get this property's value with showSortIndicator().
This property holds whether this list view should show tooltips for truncated column texts.
The default is TRUE.
Set this property's value with setShowToolTips() and get this property's value with showToolTips().
This property holds the number of pixels a child is offset from its parent.
The default is 20 pixels.
Of course, this property is only meaningful for hierarchical list views.
Set this property's value with setTreeStepSize() and get this property's value with treeStepSize().
This file is part of the Qt toolkit. Copyright © 1995-2002 Trolltech. All Rights Reserved.
| Copyright © 2002 Trolltech | Trademarks | Qt version 3.0.5
|
